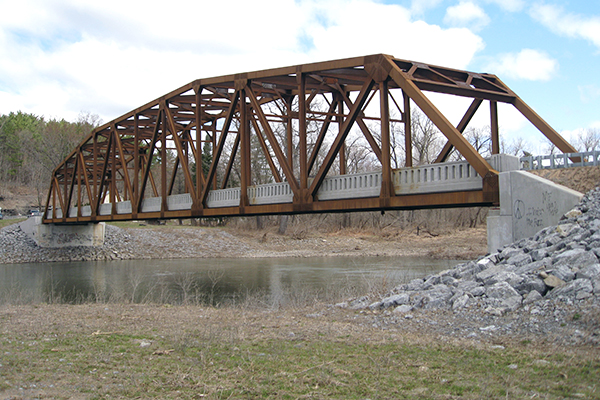

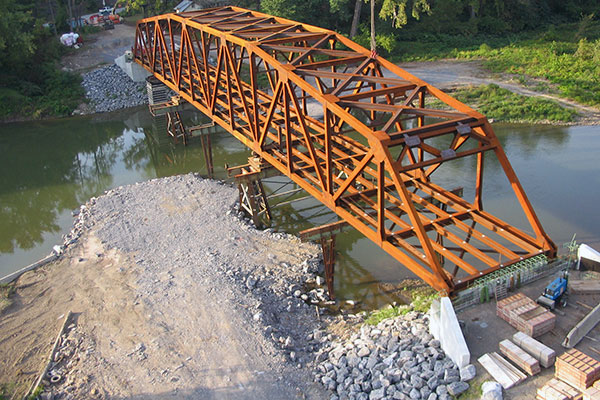

Junction Road Truss Bridge over Schoharie Creek

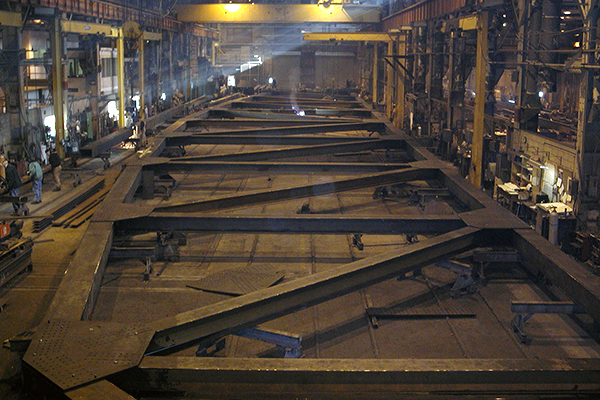

300-foot span fracture critical through truss bridge. CNC and match drilling in the shop at lay-down resulting in no field misalignment of holes and no reaming.

Location:  Schoharie, NY

Completed:  Summer 2006

Structural Steel Tonnage:  500 tons

Owner:  New York State

Engineer:  Earth Tech

General Contractor:  Tioga Construction
